Wear part Roller Ring of Rotary Drum Dryer

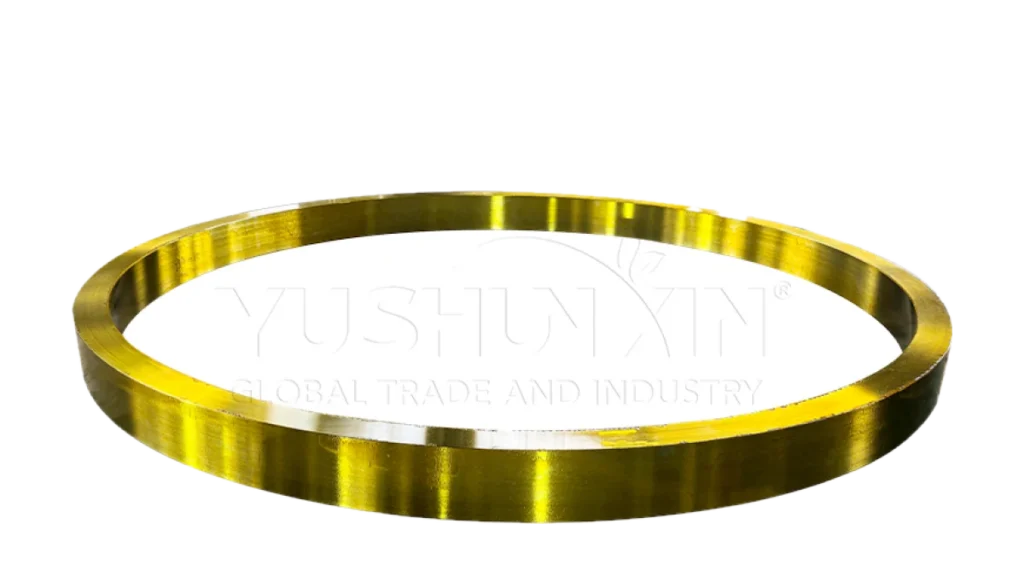

Cast steel roller ring that runs on the support rollers of a rotary drum. It gives the drum a stable, wear-resistant track so the shell stays aligned while turning under load and heat.
Part appearance reference · made to order
✓Source-aware dataPublished values remain separate from engineering review.
✓Material firstSelection starts with feed condition and duty.
✓Line integrationUpstream and downstream interfaces are reviewed.
✓Responsive mediaImages use WordPress responsive output.
✓Project validationFinal configuration follows technical confirmation.
01Overview
Equipment context
✓
Hardened track
Takes the rolling contact load
✓
Strict tolerance
Prevents drum misalignment
✓
Low friction
Reduces wear on rollers and ring
✓
High temperature
Stable under dryer conditions
✓
Custom diameter
0.8-8 m range
01
Function
What this part does
The ring and the support roller wear as a pair
The ring is fitted around the drum shell and rolls on the support rollers. It has to stay round and concentric: once the running surface develops flats or the fit loosens, the drum starts to creep, the shell distorts and the whole rotating assembly works harder. Ring and roller condition should always be reviewed together.
Engineer’s note
Drum diameter, ring width and the matching roller diameter are needed for a quotation. Rings are supplied to the measured shell, with the running surface finished for the roller pair.
02
Specification
Technical parameters
MaterialCast steel (customizable)
Size0.8-8 m (customizable)
FunctionFor supporting, guiding and enabling smooth rotation
Applicable equipmentVarious large rotary equipment, rotary dryer, rotary granulator, rotary kiln, ball mill, rotary drum screen, large rotary mixer
Before ordering
- Equipment model and drum or roll diameter
- Existing part drawing, photo or sample
- Required quantity and delivery date
Dimensions and material grade are confirmed in writing before production.
03
Compatibility
Equipment this part fits
Equipment this part is made for.
Equipment this part is made for.
Equipment this part is made for.
Project consultation
Keep the line running
Send the equipment model and a photo or drawing of the worn part. We will confirm the replacement dimensions and recommend a spare set.
Talk to an engineer
06Verified source
Published technical data
| Material |
Cast steel (customizable) |
| Size |
0.8-8 m (customizable) |
| Function |
For supporting, guiding and enabling smooth rotation |
| Applicable equipment |
Rotary dryer, rotary granulator, rotary kiln, ball mill, rotary drum screen, large rotary mixer |
Project inquiry
Confirm the selection basis for Roller Ring of Rotary Drum Dryer
Share the material, target capacity, finished product and site conditions so the next engineering step can be defined.
