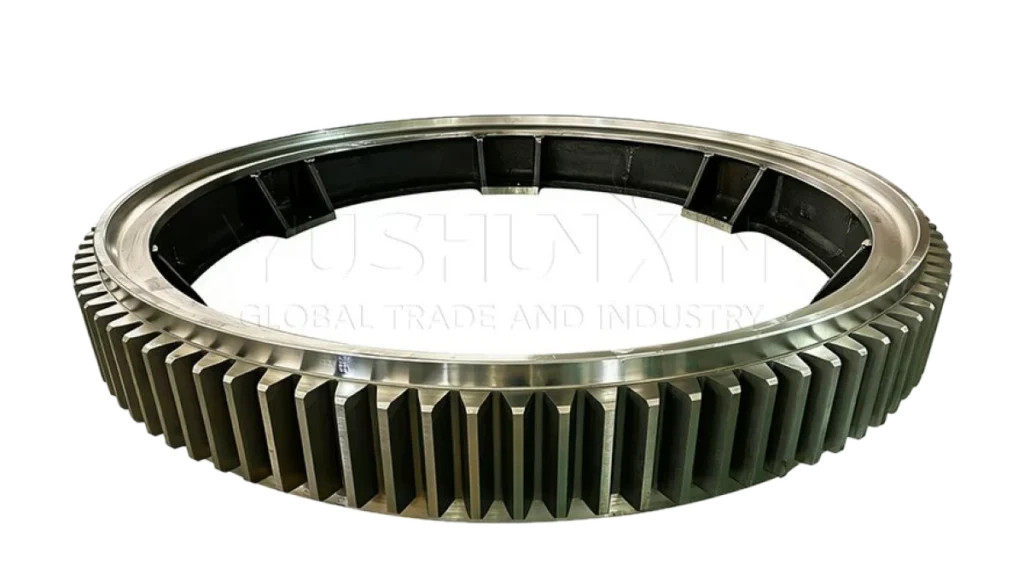

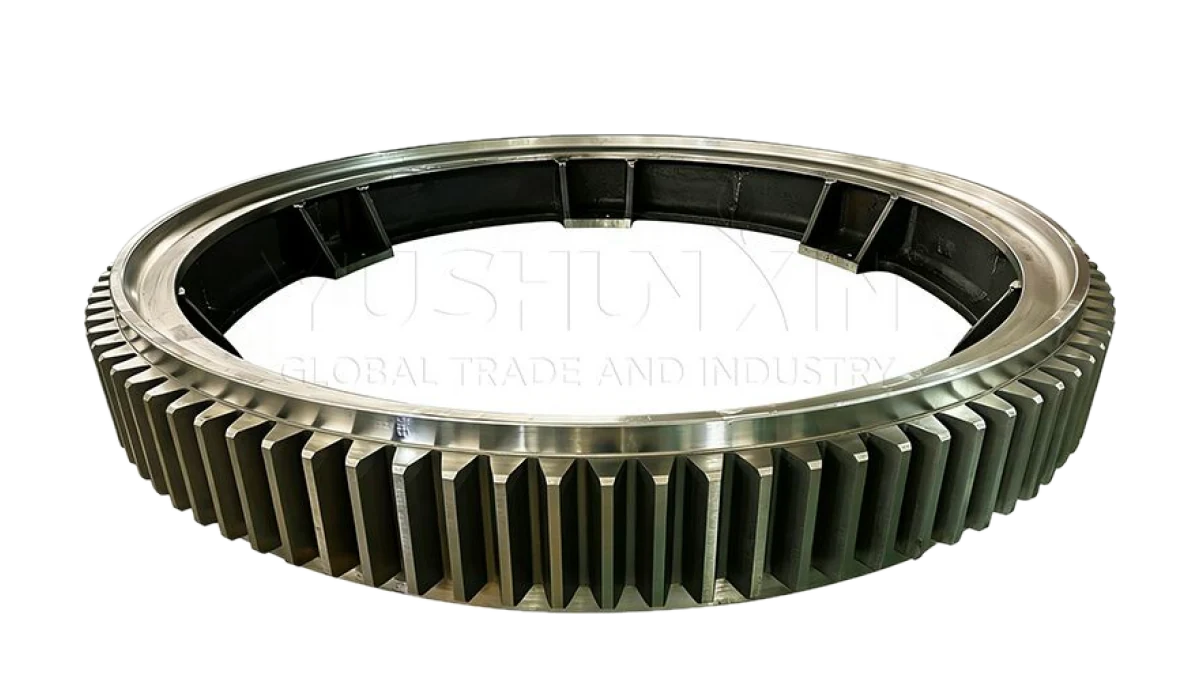

Wear part Large Gear Ring of Rotary Drum Dryer
Cast steel gear ring that takes torque from the drive pinion and turns the drum. Tooth condition sets how smoothly and quietly the dryer runs, and it is usually the first sign of drive misalignment.
Part appearance reference · made to order
✓Source-aware dataPublished values remain separate from engineering review.
✓Material firstSelection starts with feed condition and duty.
✓Line integrationUpstream and downstream interfaces are reviewed.
✓Responsive mediaImages use WordPress responsive output.
✓Project validationFinal configuration follows technical confirmation.
01Overview
Equipment context
✓
Precision teeth
Meshes with the drive pinion
✓
Cast steel
Handles torque and shock load
✓
Bolted or welded
Fitted to the drum shell
✓
Custom diameter
0.8-8 m range
✓
Field serviceable
Segments can be replaced on site
01
Function
What this part does
Tooth wear is a drive problem before it is a gear problem
The gear ring transmits power from the motor and gearbox to the shell. Wear or poor mesh shows up as noise, vibration and current spikes, and it accelerates quickly once the pinion alignment drifts. Checking backlash and lubrication at the same interval as the rollers keeps both faces alive.
Engineer’s note
Send the drum diameter, tooth count and module, plus photos of the existing mesh. Rings are matched to the pinion and supplied with mounting details.
02
Specification
Technical parameters
MaterialCast steel (customizable)
Size0.8-8 m (customizable)
FunctionUsed to drive the drum to rotate
Applicable equipmentVarious large rotary equipment, rotary dryer, rotary granulator, rotary kiln, ball mill, rotary drum screen, large rotary mixer
Before ordering
- Equipment model and drum or roll diameter
- Existing part drawing, photo or sample
- Required quantity and delivery date
Dimensions and material grade are confirmed in writing before production.
03
Compatibility
Equipment this part fits
Equipment this part is made for.
Equipment this part is made for.
Equipment this part is made for.
Project consultation
Keep the line running
Send the equipment model and a photo or drawing of the worn part. We will confirm the replacement dimensions and recommend a spare set.
Talk to an engineer
06Verified source
Published technical data
| Material |
Cast steel (customizable) |
| Size |
0.8-8 m (customizable) |
| Function |
Used to drive the drum to rotate |
| Applicable equipment |
Rotary dryer, rotary granulator, rotary kiln, ball mill, rotary drum screen, large rotary mixer |
Project inquiry
Confirm the selection basis for Large Gear Ring of Rotary Drum Dryer
Share the material, target capacity, finished product and site conditions so the next engineering step can be defined.
